DFP Message Templates

General

Keywords are used inside the {$ and} delimiters, for example, FLH.CODE.

IMPORTANT

All message types created using message templates are processed (generated) by the template generator (Source/TemplateGenerator).

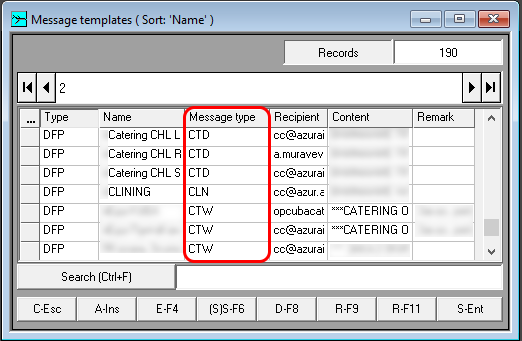

If template-based messages are assigned the same message types as the supported standard message types, they will be processed both according to the standard message processing rules and according to the template rules defined in the configuration.

For example, if a template-based message is assigned the MVT message type, it will be processed by both mechanisms.

Header section

FLHS.DATE – Flight dates, separated by commas

Route section

Information is listed inside the SCHEDULE … $SCHEDULE block

Output modes:

FL — by flight legs
AP — by airports

Flight
FLH	Flight as defined in the database
FLH.IATA[.<sep>]	Flight with the IATA code. `<sep>` specifies the separator between the code and the flight number. Separator is ignored for call signs.
FLH.ICAO[.<sep>]	Flight with the ICAO code. `<sep>` specifies the separator between the code and the flight number. Separator is ignored for call signs.
FLH.INT[.<sep>]	Flight with the internal code. `<sep>` specifies the separator between the code and the flight number. Separator is ignored for call signs.
FLH.CODE	Flight code
FLH.CODE.IATA	IATA flight code
FLH.CODE.ICAO	ICAO flight code
FLH.CODE.INT	CTS flight code
FLH.NAME	Flight number
Carrier
CARRIER.NAME.RU	Name
CARRIER.NAME.EN	English name
CARRIER.IATA	IATA code
CARRIER.ICAO	ICAO code
CARRIER.INT	CTS code
Route (FL mode)
DEP.NAME.RU	Departure airport name (Russian)
DEP.ICAO	Departure airport ICAO code
DEP.IATA	Departure airport IATA code
DEP.INT	Departure airport internal code
DEP.TERM	Departure terminal (IATA code)
ARR.NAME.RU	Arrival airport name (Russian)
ARR.ICAO	Arrival airport ICAO code
ARR.IATA	Arrival airport IATA code
ARR.INT	Arrival airport internal code
ARR.TERM	Arrival terminal (IATA code)
Airport (AP mode)
AP.NAME.RU	Airport name (Russian)
AP.ICAO	Airport ICAO code
AP.IATA	Airport IATA code
AP.INT	Airport internal code
VAR.AP.[name]	Constants filtered by airport
Aircraft
AC.REG	AC reg.
AC.TYPE.NAME	AC type (English)
AC.TYPE.ICAO	AC type ICAO code
AC.TYPE.IATA	AC type IATA code
AC.MTOW.LBS	Maximum takeoff weight (lb)
AC.MTOW.T	Maximum takeoff weight (t)
AC.MTOW.KG	Maximum takeoff weight (kg)
AC.CONF	Aircraft configuration, e.g. 12C278Y, 189Y, 220
Times
STD[.TimeType].Format	Scheduled departure time. 'TimeType' accepts the following values: <empty> or 'Z' – UTC, 'L' – local time at the departure airport. Scheduled Time of Departure
ETD.Format	Estimated departure time. Estimated Time of Departure (wheels up)
ATD.Format	Actual departure time. Actual Time of Departure
AOBT.Format	Actual off-block time. Actual Off-Block Time
STA[.TimeType].Format	Scheduled arrival time. 'TimeType' accepts the following values: <empty>` or 'Z' – UTC, 'L' – local time at the departure airport. Scheduled Time of Arrival
ETA.Format	Estimated arrival time. Estimated Time of Arrival (touch down)
ATA.Format	Actual arrival time. Actual Time of Arrival (touch down)
AONBT.Format	Actual on-block time. Actual On-Block Time
Delay
DL.DEP.NAME	Departure delay description
DL.DEP.CODE	Departure delay code
DL.DEP.TIME.Format	Delay time (ETD/ATD − STD)
Special flight type
LITER.NAME	Name
LITER.CODE	Code
Preliminary information
Crew
PRE.CREW.TTL	Total number of crew members (flight crew + cabin crew)
PRE.CREW.CPT	Number of flight crew members
PRE.CREW.CAB	Number of cabin crew members
Passengers
PRE.PAX.TTL	Total
PRE.PAX.TTL.B	Total, Business Class
PRE.PAX.TTL.Y	Total, Economy Class
PRE.PAX.TLS	Total occupied seats (blocked + booked)
PRE.PAX.TLS.B	Total occupied seats (blocked + booked), Business Class
PRE.PAX.TLS.Y	Total occupied seats (blocked + booked), Economy Class
PRE.PAX.BSN	Business Class
PRE.PAX.ADT	Adult passengers
PRE.PAX.CHD	Children (2–12 years)
PRE.PAX.INF	Infants (under 2 years)
Cargo
PRE.CARGO.TTL	Baggage + Mail + Cargo
PRE.CARGO.BG	Baggage
PRE.CARGO.ML	Mail
PRE.CARGO.CG	Cargo
Fuel
PRE.FUEL	Fuel from the preliminary data, rounded up to the next 100 kg
PRE.FUEL.UPLIFT	Fuel on board (FOB) from the OFP — FOB at the final point of the route (actual/estimated) from the previous OFP
PRE.FUEL.TAKEOFF	Fuel from the preliminary data (PRE.FUEL) − OFP taxi-out fuel
PRE.FUEL.ONBOARD	Fuel on board from the OFP. Deprecated. Use OFP.FOB instead.
PRE.FUEL.TAXIOUT	Deprecated. Use OFP.TAXI.FUEL instead.
Weight
PRE.DOW	Dry operating weight. DOW = aircraft structural weight + operating load for domestic flights from the Aircraft directory + crew weight. Crew weight = number of crew members in Operational Information × Crew Weight from the directory.
PRE.PLD	Payload = number of passengers from the preliminary information × Passenger Weight + baggage + mail + cargo
PRE.ZFW	Zero fuel weight. PLD + DOW
Information from OFP
OFP.FOB	Fuel on board (FOB)
OFP.FOBR	FOB at the final point of the route (actual/estimated) from the previous OFP
OFP.TOF	Fuel on board − taxi fuel
OFP.PLD	Payload
OFP.DOW	Dry operating weight
OFP.ZFW	ZeroFuelWeightMax
OFP.MTOW	TakeoffWeightMax
OFP.ETOW	TakeoffWeightEstimate
OFP.MLDW	LandingWeightMax
OFP.ELDW	LandingWeightEstimate
OFP.TRIP.FUEL	Trip fuel
OFP.TRIP.TIME.Format	Trip time
OFP.TAXI.FUEL	Taxi fuel
Crew information $CREW … $CREW
CREW.ORDER	Sequence number (flight/cabin)
CREW.FIRSTNAME.ENG	First name (English)
CREW.SURNAME.ENG	Last name (English)
CREW.SEX	Gender (M/F)
CREW.CHAIR.CODE.ENG	Seat code
CREW.BIRTHDAY.Format	Date of birth in the specified format
CREW.ID.NUMBER	ID card number
CREW.PS.NUMBER	Passport number
CREW.PS.ISSUE	Passport issue date
CREW.PS.EXP	Passport expiry date
CREW.PHONE	Crew member phone number
CREW.NAT.ENG	Nationality
CREW.NAT.CODE2	Nationality (2-letter code)
CREW.NAT.CODE3	Nationality (3-letter code)
Count
CREW.COUNT	Total
CREW.COUNT.CPT	Flight crew
CREW.COUNT.CAB	Cabin crew
CREW.COUNT.TCH	Technical personnel
CREW.COUNT.PAX	Positioning as passengers
Phone numbers
CREW.PHONE.CPT	Flight crew
CREW.PHONE.CAB	Cabin crew
CREW.PHONE.TCH	Technical personnel
CREW.PHONE	All phone numbers
Email
CREW.EMAIL.CPT	Flight crew
CREW.EMAIL.CAB	Cabin crew
CREW.EMAIL.TCH	Technical personnel
CREW.EMAIL	All email addresses
Permit information $PERMITS … $PERMITS
COUNTRY.CODE	Country code
COUNTRY.NAME	Country name
NUMBER	Permit number
Remarks
RMK.FLIGHTNUMBER	Flight number remark
RMK.FLIGHTCODE	Carrier code remark
RMK.FLIGHT	Additional flight information in DFP
RMK.LEG	Additional leg information

Text Constants

VAR.[name][|default_value]

VAR.ARRIVE.[name] – Constants filtered by the arrival airport.

VAR.DEPART.[name] – Constants filtered by the departure airport.

If <default_value> is not specified, the constant is replaced with an empty string.

{$UPPER … $UPPER} converts text to uppercase.

{$LOWER … $LOWER} converts text to lowercase.

Miscellaneous

User (Users directory)
USER.NAME	Full name
USER.EMAIL	Email address
USER.PHONE	Phone number
Time
NOW.Format	Current date and time

Address section

Macros are specified inside the {$ } construct.

ADR.CARRIER	Addresses from the address book filtered by carrier
ADR.ARRIVE.[group name]	Addresses from the address book filtered by arrival airport
ADR.DEPART.[group name]	Addresses from the address book filtered by departure airport. An [address group] may also be specified.
ADR.NAV	Addresses from the Area Control Centers directory taken from the latest FPL
ADR.FPL	Addresses from the latest FPL
ADR.[group name]	Addresses from the address book filtered by [address group]
~~{$ADR.ACOWNER}~~	~~Addresses from the address book filtered by aircraft owner. Not used.~~

Parameters enclosed in square brackets [ ] are optional.
